Features
Single supply voltage
4.5V ~ 20V for loudspeaker driver Built-in LDO output 5V for others
Loudspeaker power from 18V supply
BTL output: 15W/CH into 8 @<1% THD+N PBTL Mode: 30W/CH into 4 @<1% THD+N
Loudspeaker power from 12V supply
BTL output: 10W/CH into 8 @10% THD+N PBTL output: 15W/CH into 4 @<1% THD+N
88% efficient Class-D operation eliminates need for heat sink
Differential inputs
+26dB fixed gain setting
Internal oscillator
Short-Circuit protection with auto recovery option
Under-Voltage detection
Over-Voltage protection
Pop noise and click noise reduction
Adjustable power limit function for speaker protection
Output DC detection for speaker protection
Filter-Free operation
Over temperature protection with auto recovery
Superior EMC performance
Applications
Boom-Box
Powered speaker
Monitors
Consumer Audio Equipment

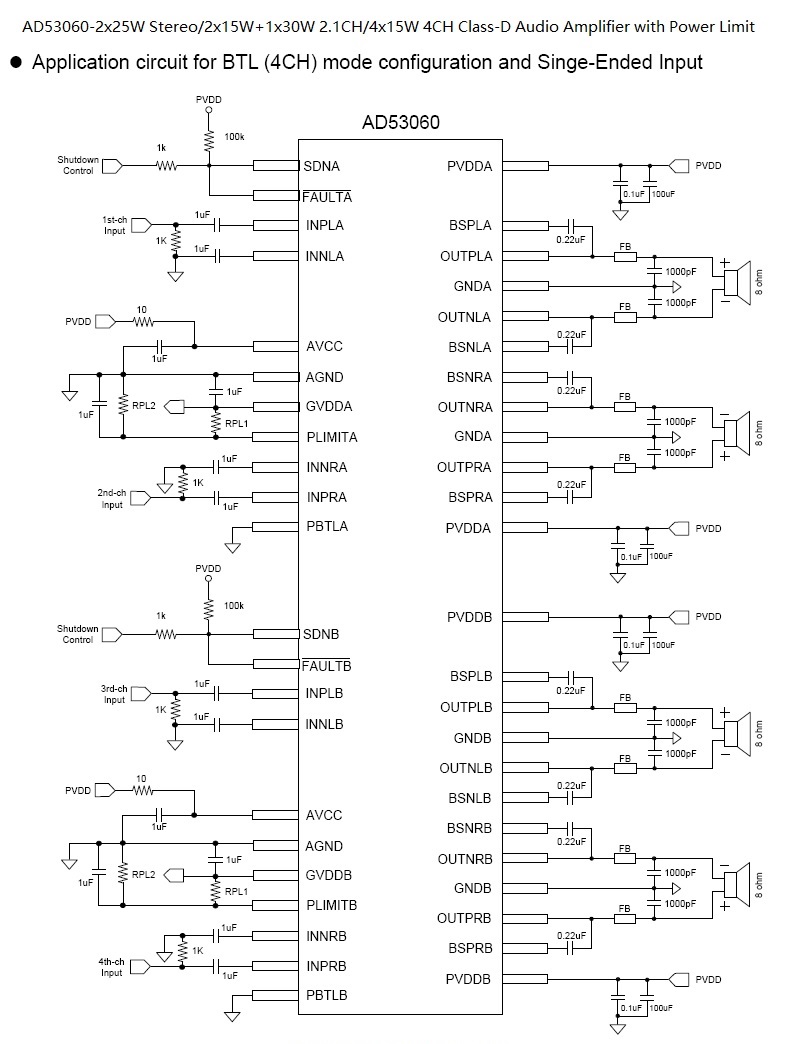

Description The AD53060 is a high efficiency stereo class-D audio amplifier with adjustable power limit function. The loudspeaker driver operates from 4.5V~20V supply voltage. It can deliver 15W/CHx4 output power into 8 loudspeaker within 1% THD+N at 18V supply voltage and without external heat sink requirement when playing music. AD53060 provides parallel BTL configuration for stereo application also, and it can deliver 25W/CHx2 into 4 loudspeaker at 18V supply voltage. The adjustable power limit function allows user to set a voltage rail lower than half of 5V to limit the amount of current through the speaker.
Output DC detection prevents speaker damage from long-time current stress. AD53060 provides superior EMC performance for filter-free application. The output short circuit and over temperature protection include auto-recovery feature.
|
